VC-P71 KIT

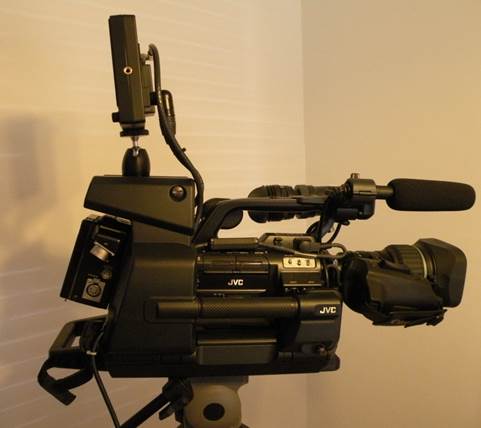

The VC-P71 KIT allows you to use the JVC DT-X71H & DT-X71F monitors on the GY-HM790 studio camera with the multicore or fiber systems.  This replaces the JVC VF-HP790U studio viewfinder.   Note that not all feature of the JVC VF-HP790U are offered in the DT-X monitors.

The kit includes a power cable and HD-SDI cable to go from the camera to the monitor.  On the multicore systems, the loop output of the monitor is use to feed back to the JVC CCU.

Some features are not supported such as return video triggering and tally.  The monitor has additional inputs that could be used for return video, and the input selection on the monitor can be used to select the image displayed.  Tally is displayed on the camera, however tally signaling to the monitor is not supported from the JVC GY-HM70U camera.  If needed there are other solutions to support this feature.
